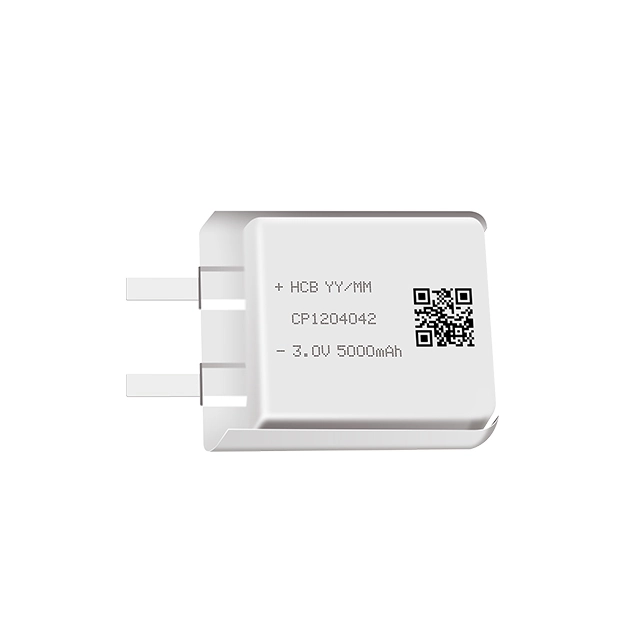

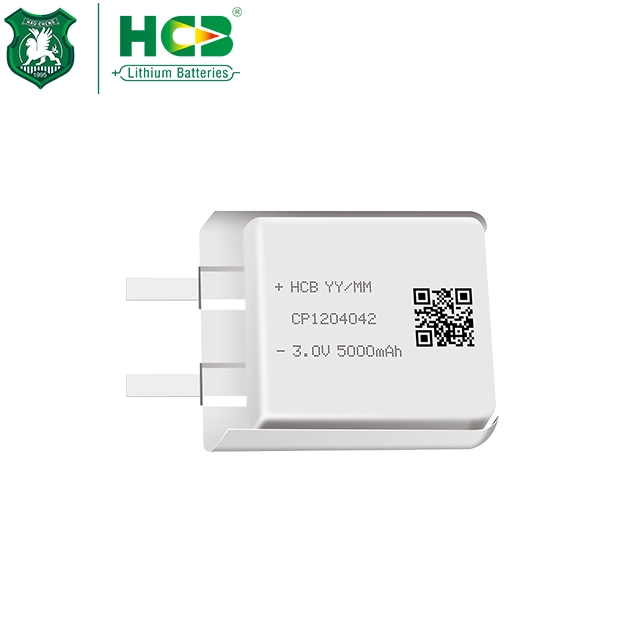

CP1204042 Lithium Pouch Cell

Name: CP1204042 Lithium Pouch Cell
Brand: HCB Battery Co., Ltd.

Low Self Discharge 5000mAh 12mm Thin Flat Lithium 3.0V CP1204042 Li-MnO₂ Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.

Details of CP1204042 Li-MnO₂ Pouch Cell

Product Details of CP1204042 Li-MnO₂ Pouch Cell

Payment & Shipping Terms Details of CP1204042 Li-MnO₂ Pouch Cell

Minimum Order Quantity	1K pcs
Price	Negotiable
Packaging Details	Special design for Air/Sea/Courier transportation
Delivery Time	15 workdays
Payment Terms	T/T, L/C
Supply Ability	two million units per month

High voltage response, stable during most of the lifetime of the application
Energy density up to 830Wh/L
Wide operating temperature range (-40℃~+70℃) suitable for the lithium pouch battery
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)

Electrical characteristics	Open circuit voltage (at 25°C)	≥3.10V
	Nominal capacity	5000mAh
	(At +25°C, the battery is discharged at a continuous current of 5mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
	Maximum continuous current	2000mA
	(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
	Maximum pulse discharge current	3000mA
	(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
	Storage (recommended)	≤+30°C
	(For more severe conditions, consult HCB)	≤75%RH
	Operating temperature range	-40°C~+70°C
	(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.)

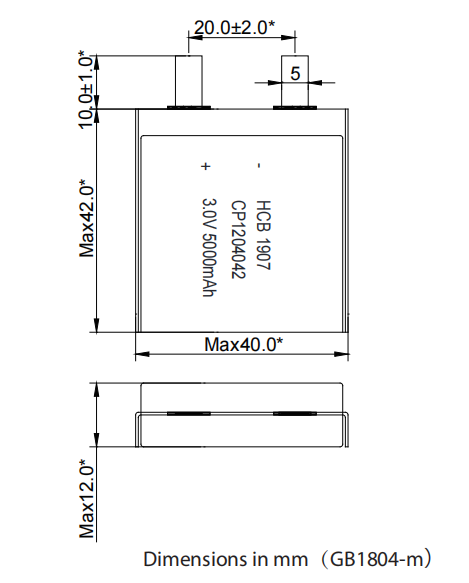

Physical characteristics	Width	Max 40.0mm
	Height	Max 42.0mm
	Typical weight	33.0g
	Li metal content	1.6g
