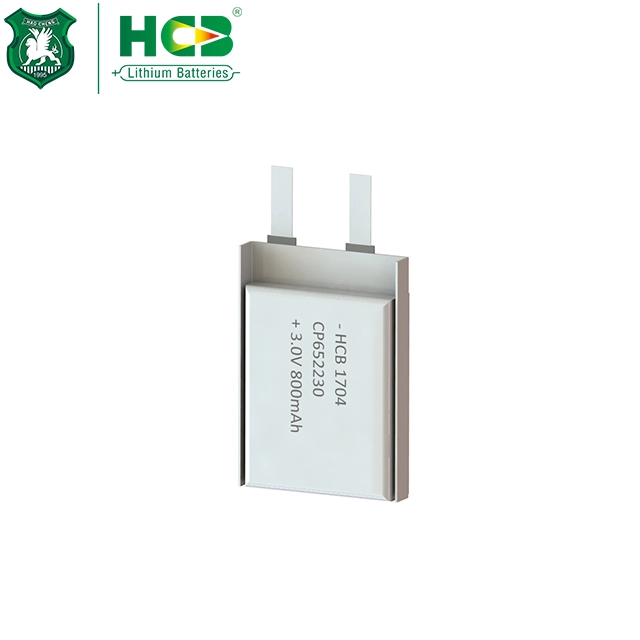

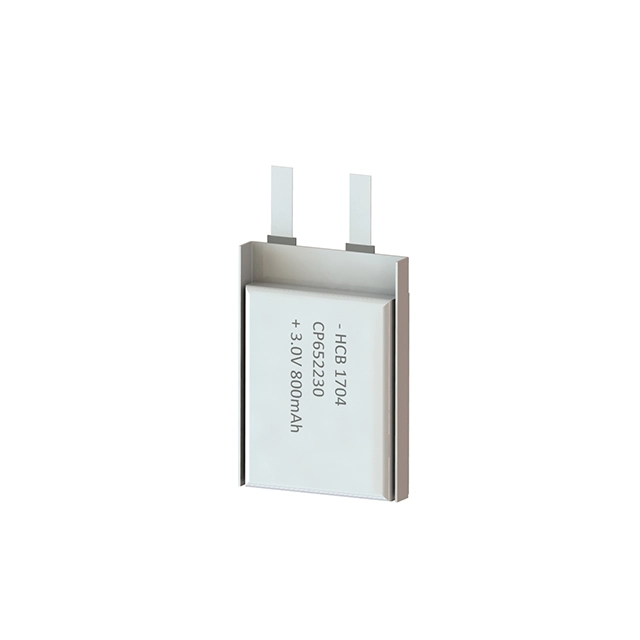

CP652230 Lithium Pouch Cell

CP652230 Primary Lithium 800mAh Flat Battery Cell for electronic shelf lables. Outdoor Wireless GPS Tracking Sensor Devices Required Different Dimensions 3V Li-MnO2 Pouch Cell, Soft Battery Non-Passivation Primary Lithium Thionyl Chloride Batteries.

Details of CP652230 Li-MnO2 Pouch Cell

Product Details of CP652230 Li-MnO2 Pouch Cell

Place of OriginChina
Brand NameHCB
CertificationRoHS/UN/CE/UL
Model NumberCP652230


Payment & Shipping Terms Details of CP652230 Li-MnO2 Pouch Cell

Minimum Order Quantity1K pcs
PriceNegotiable
Packaging DetailsSpecial design for Air/Sea/Courier transportation
Delivery Time5 workdays
Payment TermsT/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply AbilityTwo million units per month


Advantage of CP652230 Li-MnO2 Pouch Cell

  • High voltage response, stable during most of the lifetime of the application

  • Energy density for lithium pouch battery up to 830Wh/L

  • Wide operating temperature range (-40℃~+70℃)

  • Low self-discharge rate (less than 1% per year  after 1 year of storage at +25℃)

Specification of CP652230 Li-MnO2 Pouch Cell

Electrical characteristicsOpen circuit voltage (at 25°C)≥3.10V
Nominal capacity800mAh
(At +25°C, battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)
Maximum continuous current300mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.)
Maximum pulse discharge current500mA
(At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.)
Storage (recommended)≤+30°C
(For more severe conditions, consult HCB)≤75%RH
Operating temperature range-40°C~+70°C
(Operation above ambient temperature may lead to reduced
capacity and lower voltage readings at the beginning of pulses, consult HCB.)
Physical characteristicsWidthMax 23.0mm
HeightMax 31.0mm
ThicknessMax 6.7mm
Typical weight7.0g
Li metal content0.21g

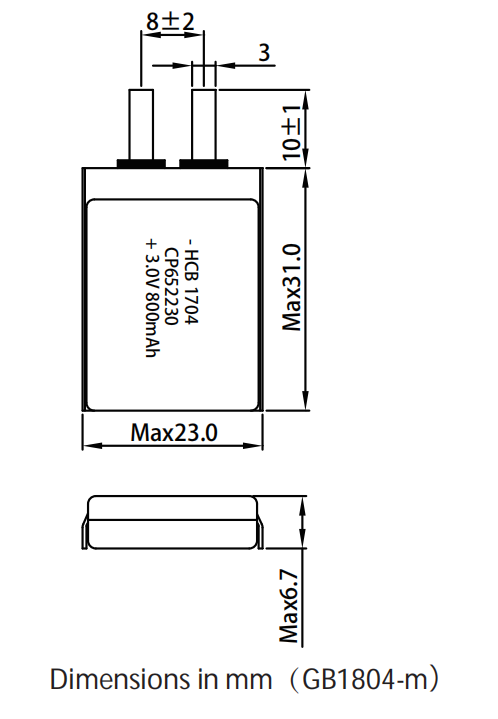

Drawing of CP652230 Lithium Pouch Cell
