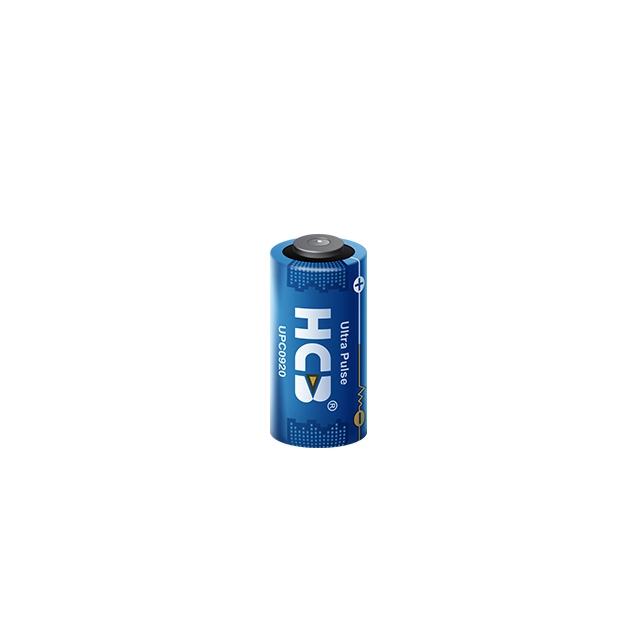

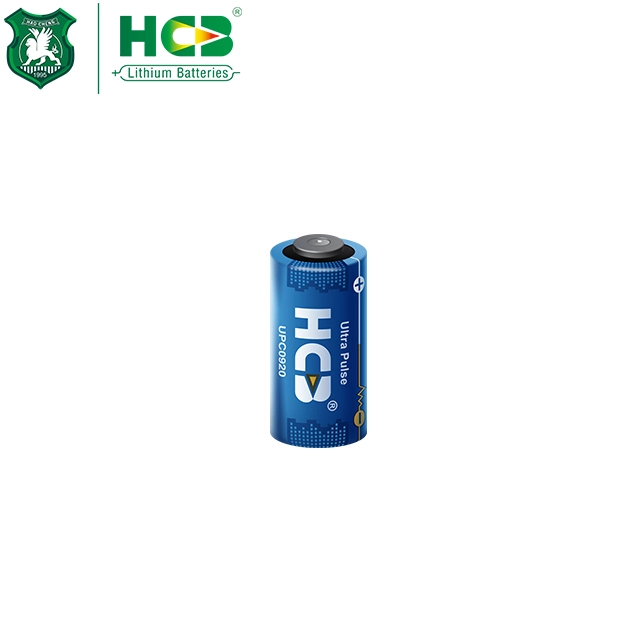

Ultra Pulse Capacitors UPC0920 Capaticy at 3.67V 45As Hermetically Sealed.
Ultra Pulse Capacitors UPC0920 Capaticy at 3.67V 45As Hermetically Sealed Up to 0.6A pulse.
The EU battery pack can output high capacity and high pulse current
High operating voltage: 2.0~3.75V
Wide operating temperature range: -40°C~90°C
Leakage current: 1~15µA
Long cycle life
Hermetically Sealed
Low Leak Current
Long Shelf Life
High Reliability
Safe Design
Wide Operating Temperature
Smart Metering
RFID Devices
Communication Equipments
Security System
| Electrical characteristics(23±2°C) | Capacity at 3.67V | 45As |
| Cut-off Voltage | 2.5V | |
| Maximum Continuous Discharge Current | 0.3A | |
| Maximum Pulse Discharge Current(1s) | 0.6A | |
| Maximum Charge Voltage | 4.0V | |
| Standard Charge Voltage | 3.67V | |
| Maximum Charge Current | 30mA | |
| Standard Charge Current | 10mA | |
| Internal Resistance(RT@1kHz) | ≤400mΩ | |
| For independent use | -40℃~+90℃ | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. When using batteries at temperature exceeding -20℃~+40℃.Consult HCB. | ||

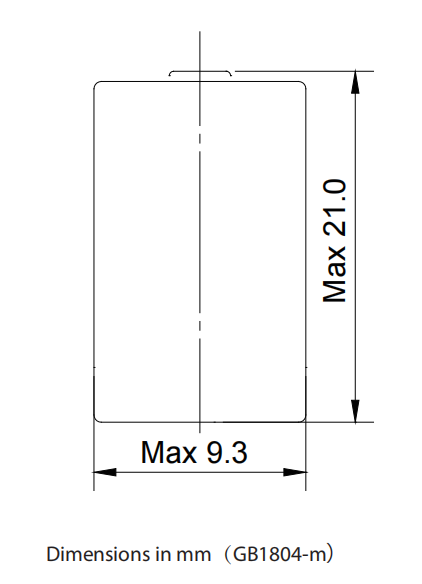

| Physical characteristics | Diameter(max) | 9.3mm |
| Height(max) | 21.0mm | |
| Typical weight | 4.2g | |
