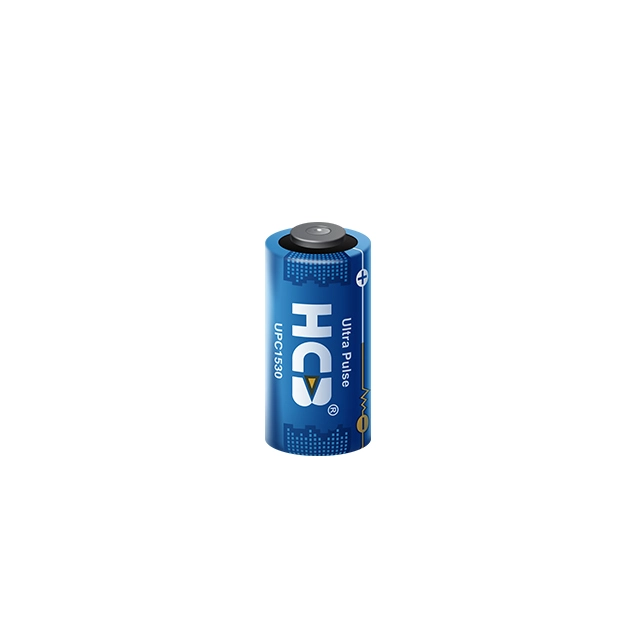

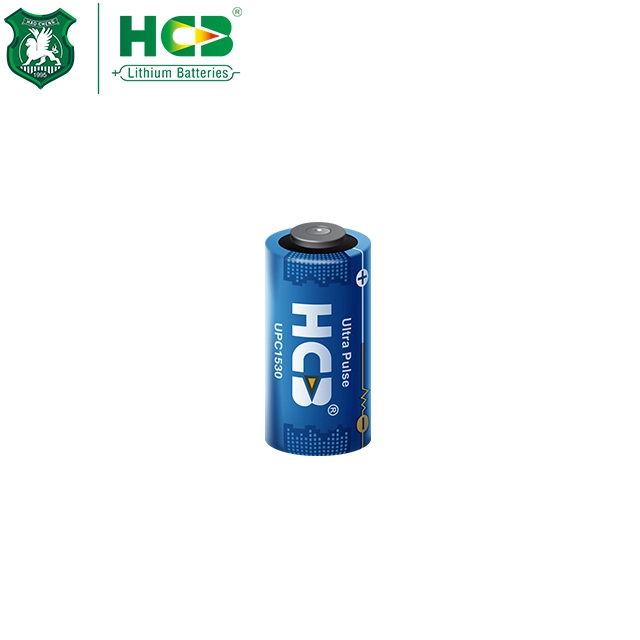

Ultra Pulse Capacitors UPC1530 Capaticy at 3.67V 250As Hermetically Sealed.
Ultra Pulse Capacitors UPC1530 Capaticy at 3.67V 250As Hermetically Sealed Up to 3A pulse.
The EU battery pack can output high capacity and high pulse current
High operating voltage: 2.0~3.75V
Wide operating temperature range: -40°C~90°C
Leakage current: 1~15µA
Long cycle life
Hermetically Sealed
Low Leak Current
Long Shelf Life
High Reliability
Safe Design
Wide Operating Temperature
Smart Metering
RFID Devices
Communication Equipments
Security System
| Electrical characteristics(23±2°C) | Capacity at 3.67V | 250As |
| Cut-off Voltage | 2.5V | |
| Maximum Continuous Discharge Current | 0.75A | |
| Maximum Pulse Discharge Current(1s) | 3.0A | |
| Pulse Discharge Voltage (-25℃ 350mA @10s) | ≥3.2V | |
| Maximum Charge Voltage | 3.95V | |
| Maximum Charge Current | 90mA | |
| Internal Resistance(RT@1kHz) | ≤140mΩ | |
| Leakage Current@RT | 1.8uA | |
| Leakage Current@80°C | 9uA | |
| Operating temperature range | -40℃~+85℃ | |

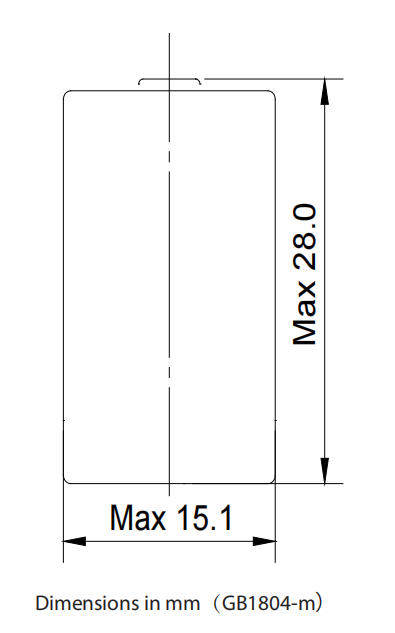

| Physical characteristics | Diameter(max) | 15.1mm |
| Height(max) | 28.0mm | |
| Typical weight | 10.3g |
