Fast Voltage response, long shelf life. 3V Li-MnO2 CP263840 Pouch Cells For ESL Price Tag, moke detector, door and window sensor, Asset Tracking.
High voltage response, stable during most of the lifetime of the application
Energy density of the lithium pouch cell up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)

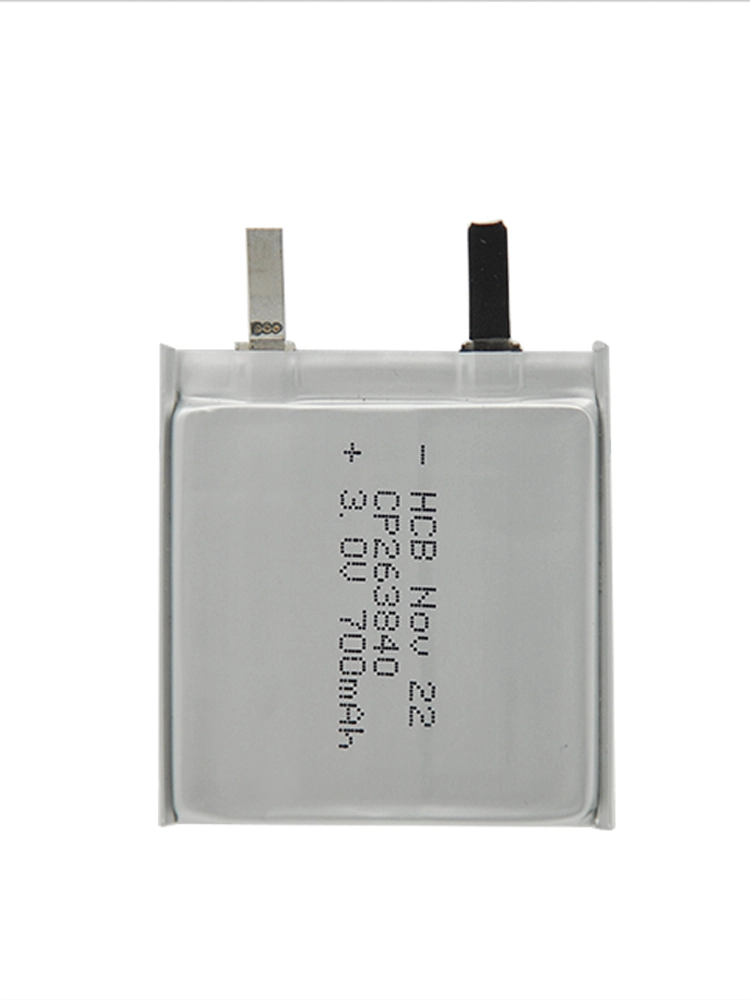

Product Details of CP263840 Li-MnO2 Pouch Cells
| Place of Origin | China |
| Brand Name | HCB |
| Certification | RoHS/UN/CE/UL |
| Model Number | CP254442 |
Payment & Shipping Terms Details of CP263840 Li-MnO2 Pouch Cells
| Minimum Order Quantity | 1K pcs |
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 5 workdays |
| Payment Terms | T/T, L/C, D/P, D/A, Western Union, MoneyGram |
| Supply Ability | Two million units per month |

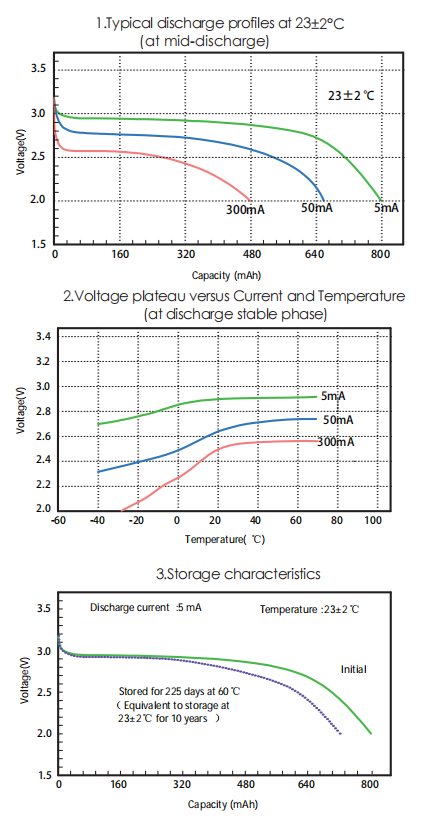

| Electrical characteristics | Open circuit voltage (at +25°C) | ≥3.10V |
| Nominal capacity | 800mAh | |
| At +25°C, the battery is discharged at a continuous current of 5mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
| Maximum continuous current | 300mA | |
| (At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of rated capacity.) | ||
| Maximum pulse discharge current | 500mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||

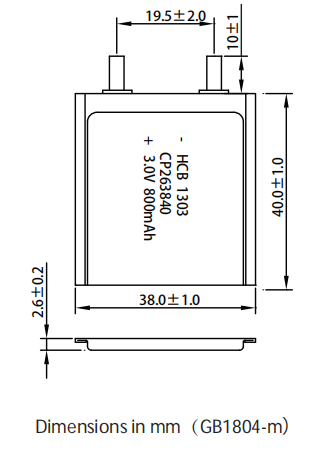

| Physical characteristics | Width | 38.0±1.0mm |
| Height | 40.0±1.0mm | |
| Thickness | 2.6±0.2mm | |
| Typical weight | 7.0g | |
| Li metal content | 0.35g | |
