ER261020 Li-SOCl2 Battery, High Power Lithium Battery 15000mAh With Low Self Discharge, UN 38.3 Passed, are used for Smart City Smart Meter, RFID Devices, Communication Equipments, Security System, GPS tracking, Horizontal drilling.
Product Details
| Place of Origin | China |
|---|---|
| Brand Name | HCB |
| Certification | UN/RoHS/CE/UL |
| Model Number | ER261020/CC Model |
Payment & Shipping Terms Details
| Minimum Order Quantity | 1K pcs |
|---|---|
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 35 work days |
| Payment Terms | T/T, L/C |
| Supply Ability | Two millions units per month |
High and Stable Voltage
Energy Density up to 590Wh/kg
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)

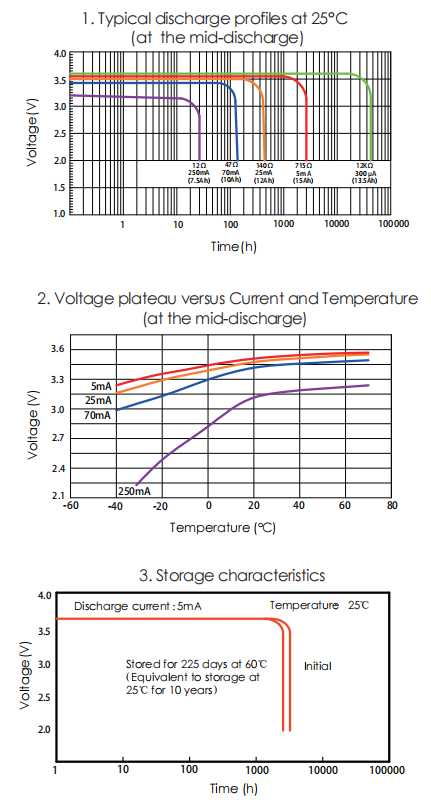

| Electrical characteristics | Open circuit voltage (at 25°C) | ≥3.65V |
| Nominal capacity | 15000mAh | |
| (At +25°C, battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V. The capacity can vary at different temperature, discharge current or cut-off voltage. ) | ||
| Maximum continuous current | 250mA | |
| (New cell*, at +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity.) | ||
| Maximum pulse discharge current | 450mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of nominal capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ） | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -55°C~+85°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||

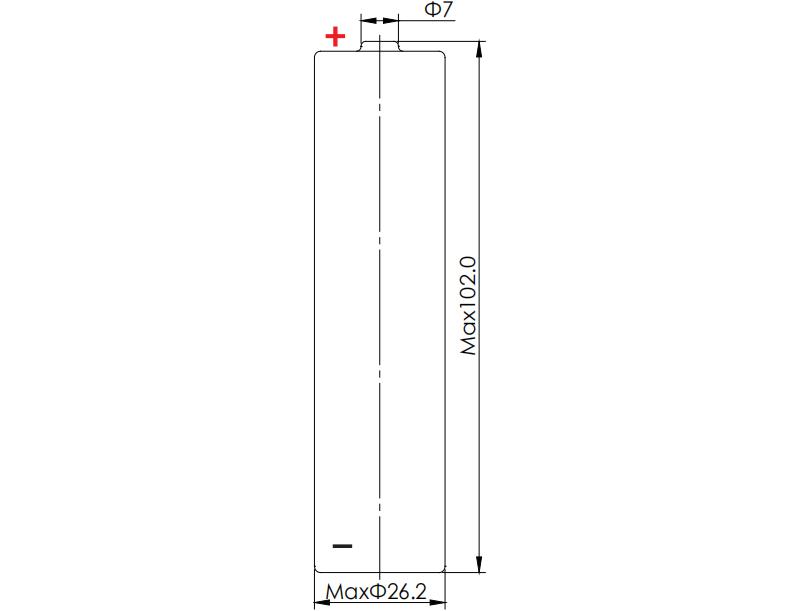

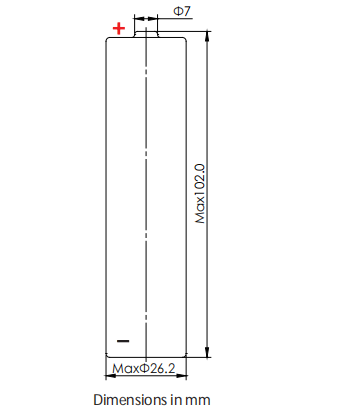

| Physical characteristics | Diameter (max) | 26.2mm |
| Height (max) | 102.0mm | |
| Typical weight | 100.0g | |
| Li metal content | 4.3g | |
This battery is a non-rechargeable battery.
DO NOT CHARGE THE BATTERY!
Do not use if the battery casing is damaged.
Please discharge the battery for a few minutes with 100mA.
Don't use different models of battery in series.
This is not a high drain battery, please don't use it for any applications with discharging current > 200 mA!
The storage area should be clean, cool (not exceeding +30 Deg C), dry, and ventilated.
