CP332544 Primary Lithium Flat Battery Cell for electronic shelf lables. Outdoor Wireless GPS Tracking Sensor Devices Required Different Dimensions 3V Li-MnO2 Pouch Cell, Soft Battery Non-Passivation Primary Lithium Thionyl Chloride Batteries.

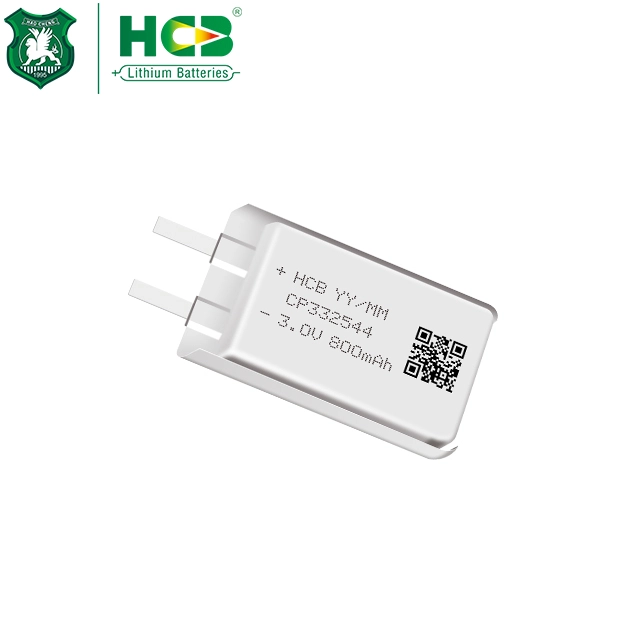

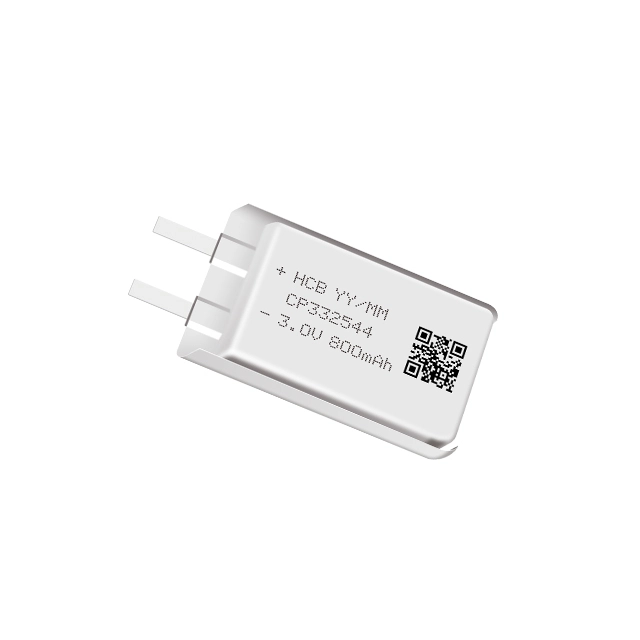

Product Details of CP332544 Li-MnO2 Pouch Cell
| Place of Origin | China |
| Brand Name | HCB |
| Certification | RoHS/UN/CE/UL |
| Model Number | CP332544 |
Payment & Shipping Terms Details of CP332544 Li-MnO2 Pouch Cell
| Minimum Order Quantity | 1K pcs |
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 5 workdays |
| Payment Terms | T/T, L/C, D/P, D/A, Western Union, MoneyGram |
| Supply Ability | Two million units per month |
High voltage response, stable during most of the lifetime of the application
Energy density for lithium pouch battery up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)

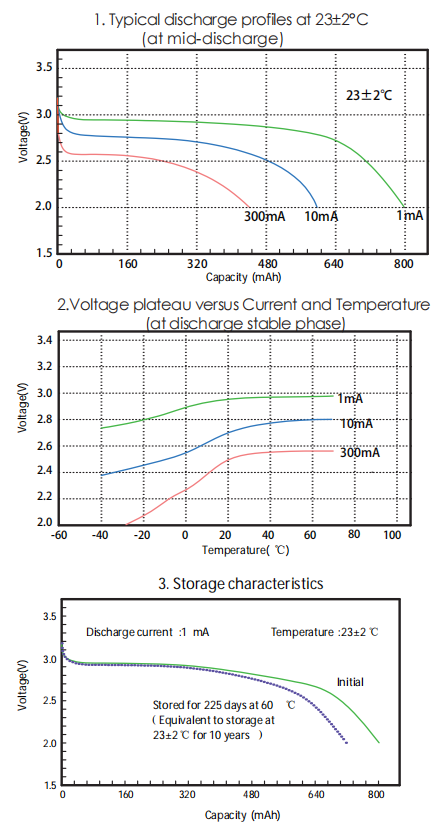

| Electrical characteristics | Open circuit voltage (at +25°C) | ≥3.10V |
| Nominal capacity | 800mAh | |
| At +25°C, the battery is discharged at a continuous current of 1mA until the voltage reaches a cut-off voltage of 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
| Maximum continuous current | 300mA | |
| (At +25°C, 2.0V cut-off, battery discharged for a minimum of 50% of rated capacity.) | ||
| Maximum pulse discharge current | 500mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB.) | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||

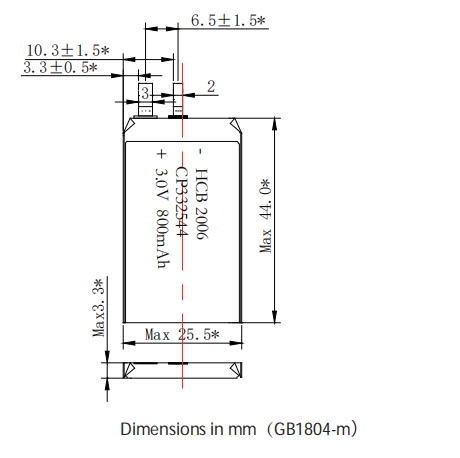

| Physical characteristics | Width | Max 25.5mm |
| Height | Max 44.0mm | |
| Thickness | Max 3.3mm | |
| Typical weight | 7.2g | |
| Li metal content | 0.32g | |
