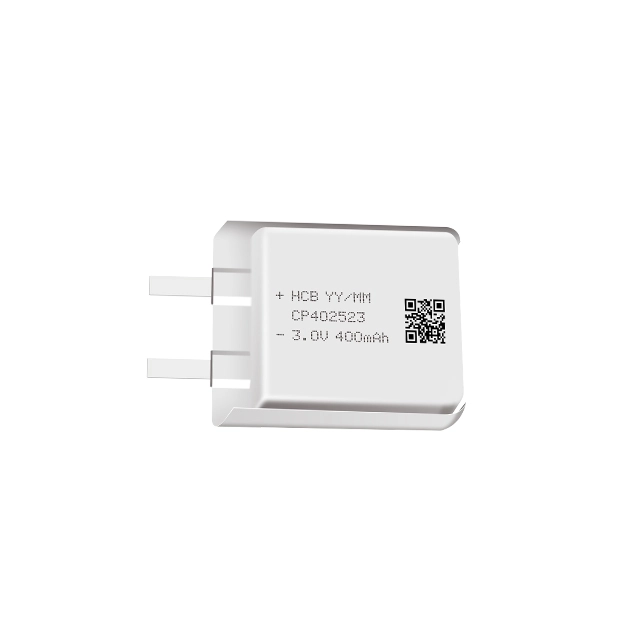

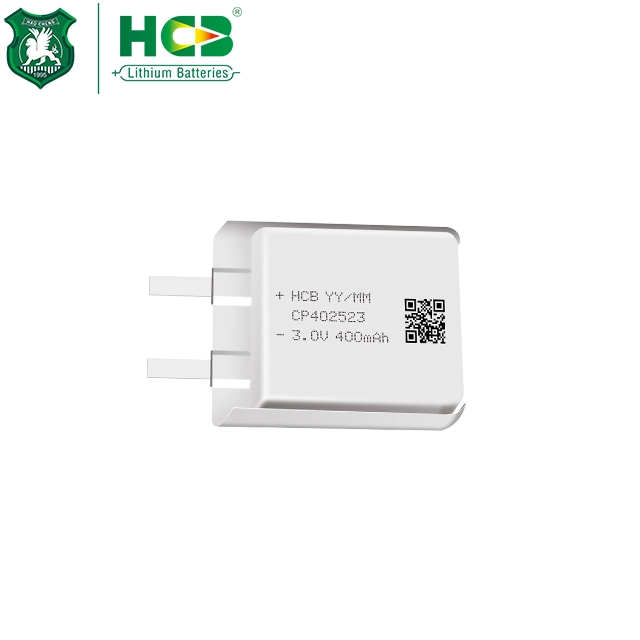

Low Self Discharge 400mAh 4mm Thin Flat Lithium 3.0V CP402523 Li-MnO2 Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.
Product Details of CP402523 Li-MnO2 Pouch Cell
| Place of Origin | China |
| Brand Name | HCB |
| Certification | RoHS/UN/CE/UL |
| Model Number | CP402523 |
Payment & Shipping Terms Details of CP402523 Li-MnO2 Pouch Cell
| Minimum Order Quantity | 1K pcs |
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 5 workdays |
| Payment Terms | T/T, L/C, D/P, D/A, Western Union, MoneyGram |
| Supply Ability | Two million units per month |
Optimized Battery Structure, Full Discharge Capacity
Long Endurance of the lithium pouch cell
No Passivation
GB 8897.4-2008、IEC 60086.4:2014 and RoHS
Security System
Smart Metering
RFID and Tracking System
Wireless Transmitting
Smart Home Devices
Military Devices
High voltage response, stable during most of the lifetime of the application
Energy density for lithium pouch battery up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
| Electrical characteristics | Open circuit voltage (at 23±2°C) | ≥3.10V |
| Nominal capacity | 400mAh | |
| (At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
| Maximum continuous current | 200mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.) | ||
| Maximum pulse discharge current | 300mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ) | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses, consult HCB.) | ||
| Typical weight | 3.5g | |
| Li metal content | 0.16g | |
