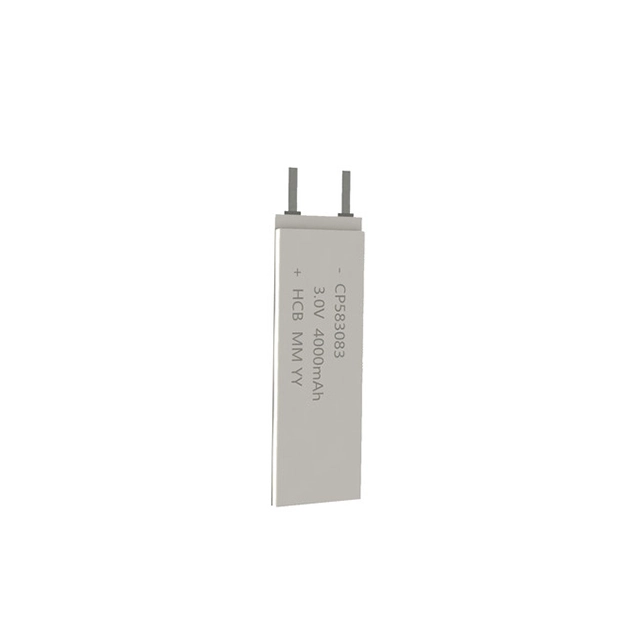

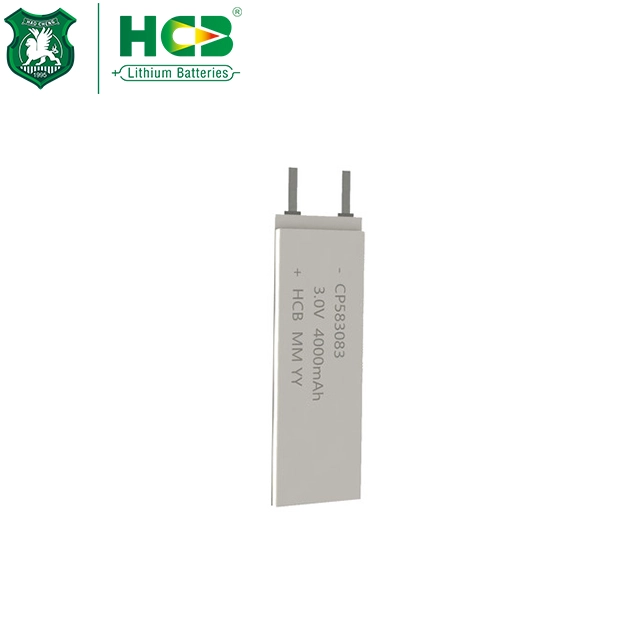

Low Self Discharge 4000mAh 5mm Thin Flat Lithium 3.0V CP583083 Li-MnO2 Pouch Cell For Electronic Price Labels ESL, Smoke detectors, GPS.
Product Details of CP583083 Li-MnO2 Pouch Cell
| Place of Origin | China |
| Brand Name | HCB |
| Certification | UN/CE/UL/RoHS |
| Model Number | CP583083 |
Payment & Shipping Terms Details of CP583083 Li-MnO2 Pouch Cell
| Minimum Order Quantity | 1K pcs |
| Price | Negotiable |
| Packaging Details | Special design for Air/Sea/Courier transportation |
| Delivery Time | 35 workdays |
| Payment Terms | T/T, L/C |
| Supply Ability | two million units per month |
Security System
Smart Metering
RFID and Tracking System
Wireless Transmitting
Smart Home Devices
Military Devices
High voltage response, stable during most of the lifetime of the application
Energy density up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
| Electrical characteristics | Open circuit voltage (at 23±2°C) | ≥3.10V |
| Nominal capacity | 4000mAh | |
| (At +25°C, the battery is discharged at a continuous current of 10mA until the voltage reaches cut-off voltage 2.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) | ||
| Maximum continuous current | 1000mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity.) | ||
| Maximum pulse discharge current | 2000mA | |
| (At +25°C, 2.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ) | ||
| Storage (recommended) | ≤+30°C | |
| (For more severe conditions, consult HCB) | ≤75%RH | |
| Operating temperature range | -40°C~+70°C | |
| (Operation above ambient Temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses,consult HCB.) | ||

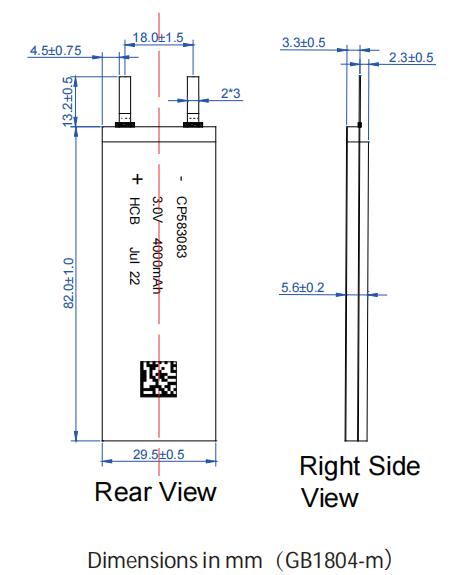

| Physical characteristics | Width | 29.5±0.5mm |
| Height | 82.0±1.0mm | |
| Thickness | 5.6±0.2mm | |
| Typical weight | 26.0g | |
| Li metal content | 1.28g | |
